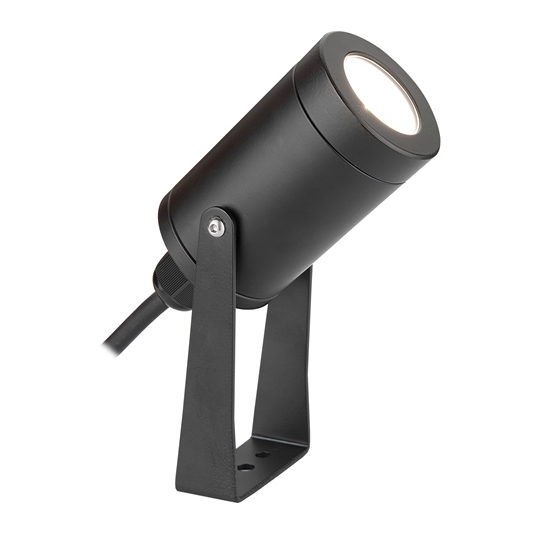

J-CW-SPL0306A-3W

    LED: 3W (3000K / 4000K / 5000K / R / G / B); 5W (3000K / 4000K / 5000K) Reduced Glare: Sunken light source
  • Beam Angle: 3W (20o / 40o / 60o); 5W (24o / 40o / 60o)
  • Finish: Powder Coated Black
  • IP rated: IP67
  • Mounting Type: U bracket for solid ground; spike for soft ground

Download

  • {p_title}

    Specitications

    J-CW-SPL0306A-3W



    • Product Name
    • spot light
    • item no.
    • J-CW-SPL0306A-3W
    • Power
    • 3
    • Lumen
    • 250lm
    • CRI
    • >90
    • CCT
    • 3000K/4000K/5000K
    • beam
    •  25o / 40o / 60o
    • Finish
    • Powder Coated Black

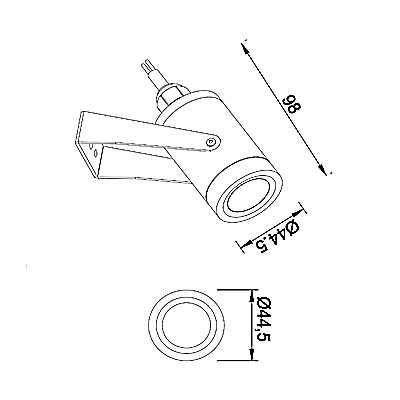

    • Dimensions
    • 44.5x98mm
    • Cutout
    •  (20o / 40o / 60o); 5W (24o / 40o / 60o)
    • IP Rating
    • 67
    • Voltage
    • 12/24V DC
    • Dimming Type
    • DALI / DMX / 1-10V / Triac / PWM
    • Mounting Type
    • U bracket for solid ground; spike for soft ground
    • Custom Dimming Type
    • available on request
